● Material: TP304L, TP316L, TP310S, Duplex 31803, etc.
● Standard: ASTM A269, A249, etc.
● Package: Wooden case, steel crate, woven bag.
● Delivery time: as required, usually within 2 months.
● Payment terms: T/T or L/C available.
● Shipping terms: FOB or CFR available. Request A QuoteBrief introduction:
|
1. Material |
201, 304, 316, 310S, 321, etc. |
|
S31803, S32750, etc. |
|
|
2. Standard |
ASTM A312, A554, A249, A270. |
|
EN 10217-7, JIS G3459 |
|
|
3. Type |
Welded, round & square |
|
4. Size range |
OD: from |
|
WT:
from |
|
|
Length: fix length or un-fix length |
|
|
5. Produce process |
ERW, TIG |
|
6. Surface process |
Pickling and annealing |
|
Mill finish, 400 grit, 600 grit polishing, mirror finish |
|
|
Polishing on both ID & OD |
|
|
7. Marking |
EASTECH, SIZE, GRADE, STANDARD, HEAT NO. |
|
8. Package |
Bundles with waterproof material outside. |
|
Wooden case, steel crate |
|
|
9. Min order quantity |
1000 KG |
|
10. Material origin |
TISCO, POSCO, LISCO and BAO STEEL |
|
11. Sample |
Yes |
|
12. OEM accepted |
Yes |
|
13. Payment term |
T/T or L/C. |
|
14. Certificate |
ISO 9001, PED |
|
15. Third party certificate |
BV, LR, SGS, TUV, etc. |
ASTM A249 Dimension Tolerance Scope:
|
外径(mm) Outside Diameter |
壁厚(mm) Thickness |
长度(mm) Length |
|
|
< 38.1 |
± 0.13 |
OD<12.7, ± 15% OD≥12.7, ± 10% |
+5 / -0 |
|
≥ 38.1~88.9 |
± 0.25 |
||
|
≥ 88.9~139.7 |
± 0.38 |
||
|
≥ 139.7~203.2 |
± 0.76 |
||
|
≥ 203.2~304.8 |
± 1.01 |
||
|
≥ 304.8~355.6 |
± 1.26 |
||
ASTM A269 Dimension Tolerance Scope:
|
外径(mm) Outside Diameter |
壁厚(mm) Thickness |
长度(mm) Length |
|
|
< 25.4 |
± 0.1 |
± 10% |
+5 / -0 |
|
≥ 25.4~38.1 |
± 0.15 |
||
|
≥ 38.1~50.8 |
± 0.2 |
||
|
≥ 50.8~63.5 |
± 0.25 |
||
|
≥ 63.5~76.2 |
± 0.3 |
||
|
≥ 76.2~101.6 |
± 0.38 |
||
|
≥ 101.6~190.5 |
+ 0.38 / -0.64 |
||
|
≥ 190.5~228.6 |
+ 0.38 / -1.14 |
||

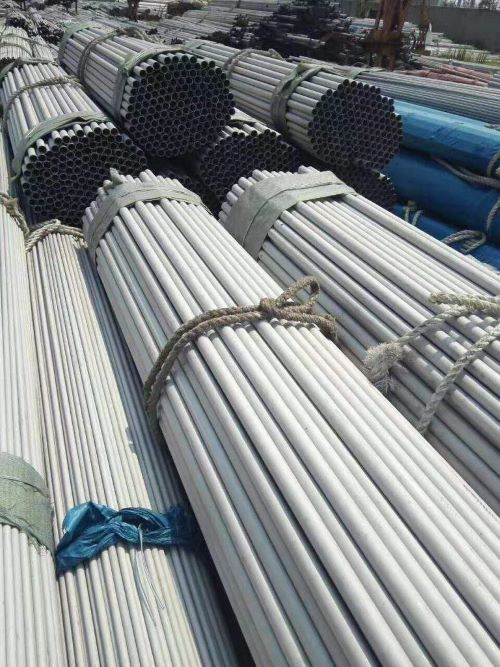

Stainless steel welded pipe
